AM Control Panel

Simple and Efficient Air System Setup for Air Mizer® Shaft Seals

Inpro/Seal Air Mizer shaft seals require a proper air system to ensure maximum sealing performance. Selecting the correct components and installing the system can be complicated and time consuming. The AM Control Panel is an all-in-one air system setup for Air Mizer shaft seals.

By including all necessary air system components in a single cabinet, the AM Control Panel eliminates guess work and significantly decreases installation time. Designed as a simple user interface, the AM Control Panel provides optimal performance for Air Mizer shaft seals.

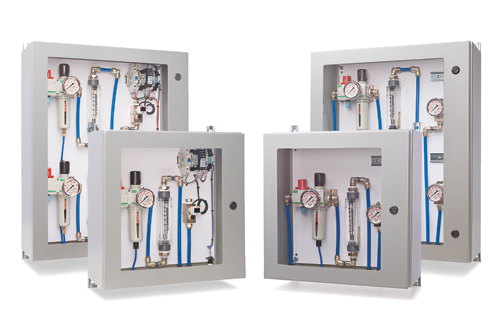

AM Control Panels can be designed in a single or double configuration to accommodate one or two Air Mizer shaft seals. For greater peace of mind, AM Control Panels can be outfitted with a pressure alarm to notify maintenance professionals of low pressure at the sealing interface.

Technical Data

  • Dimensions –
    • Single- 508 mm (20 in.) x 508 mm (20 in.) x 215 mm (8.5 in.)
    • Double- 762 mm (30 in.) x 600 mm (24 in.) x 215 mm (8.5 in.)
  • Weight –
    • Single- 22.7 kg (50 lbs)
    • Double- 38.6 kg (85 lbs)
  • Protection – Complies with IP55, IK 07 standards
  • Pressure Rating – 6.9 bar (100 psig) maximum
  • Flow Rating – 60 SCFM
  • Temperature Range – -0°C (32°F) to 48°C (120°F)
  • Installation – Wall Mount

Ready to Get Started?

The AM Control Panel is the easiest and most efficient way to set up your Air Mizer shaft seal.
