Application Success


Seal Position: Bearing Frame
Industry: Food & Beverage


Excessive contamination from the surrounding process and a leaking stuffing box consistently caused premature bearing failure on a food processing pump. The OEM rotary lip seals could not prevent contamination from entering the bearing housing, which caused catastrophic equipment failure in as little as a month.

The bearing frame failures would require shutdown of the process to remove and replace the frames, resulting in costly downtime.


Inpro/Seal® Bearing Isolators were installed on both ends of the bearing frame. The Inpro/Seal Bearing Isolator is a non-contacting bearing seal that permanently protects against contamination ingress and lubrication loss. Due to its non-contacting design, the Inpro/Seal Bearing Isolator has no wearing parts, lasting the lifetime of the equipment.


Bearing frame life increased to over two years and running. Due to the increased performance on their pump bearing frames, the plant has targeted additional assets for Inpro/Seal Bearing Isolator upgrades.

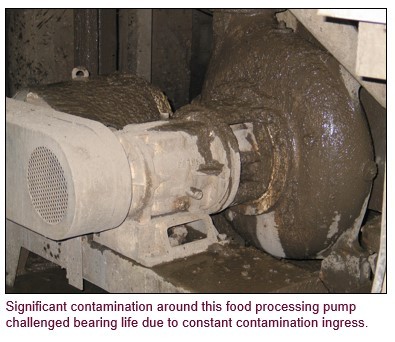

Food processing pump with signficant contamination conditions

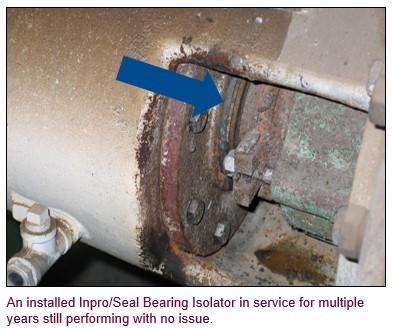

Bearing Isolator installed on food processing pump still performing after years of service

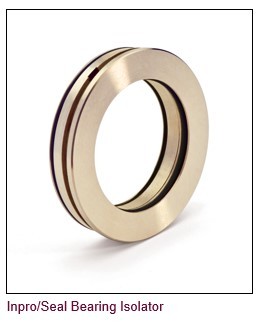

Inpro/Seal Bearing Isolator

Permanent Bearing Protection

Inpro/Seal Bearing Isolators provide permanent bearing protection against contamination ingress and lubrication loss on rotating equipment. With a unique, non-contacting design, Inpro/Seal Bearing Isolators are maintenance-free and last lifetime of your equipment.

Read More

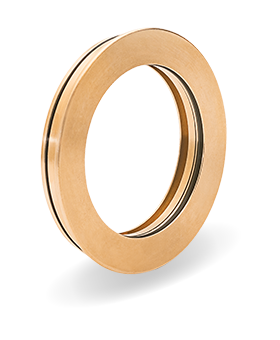

VB45-S Bearing Isolator
