Application Success


Make: Shick
Industry: Food & Beverage


A facility in the Midwest produces dough that is used in toaster pastries and various cookie mixes. They have numerous rotary feeders to meter the flow of sugar and flour between vessels throughout the facility. These rotary feeders typically run between 5 and 30 rpm. This location was dealing with several issues, including:

  • Material leaking through the factory packing to atmosphere, requiring daily housekeeping and resulting in lost product
  • Material getting into the bearings and causing premature bearing failure
  • Worn rotary valve shafts


Air purged Inpro/Seal® Bearing Isolators were flange mounted on the rotary feeders to protect against both product leakage and contamination. Inpro/Seal Bearing Isolators are permanent compound labyrinth seals with no wearing parts. These custom engineered seals were designed to run with a 2 to 3 psi air purge to keep the labyrinth between the stator and rotor clear of product.


From 2014 to 2016, the customer replaced 21 Shick rotary valves with the air purged Inpro/Seal Bearing Isolators on both ends of the rotary feeders. The Bearing Isolators have run successfully and maintenance free since installation.

Shick rotary valve with flour leaking to flour
Rotary feeder installed with air-purged Bearing Isolators

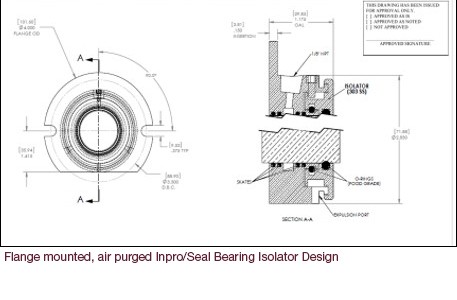

Engineering drawing for flange-mounted, air-purged Inpro/Seal Bearing Isolator
Rotary feeder diagram
