Application Success


Make: Gericke
Industry: Food and Beverage – Sugar


A horizontal mixer was leaking product out of the vessel due to insufficient sealing. The lost product caused a safety issue and would be thrown out. To change the drive end seals the gearbox had to be removed and reinstalled, leading to two to three days of lost production each time. The leaking seals increased maintenance costs and downtime.


Inpro/Seal® Air Mizer® shaft seals were installed at both the drive end and non-drive end of the mixer. Two seals were needed per end for a total of four Air Mizer seal installs.

The Air Mizer is a maintenance free, fully articulating, non-contacting shaft seal that utilizes a positive air purge to eliminate product loss and contamination. Its unique design fully articulates to allow for radial, angular and axial shaft movement.

The Air Mizer seals were constructed of food grade materials to accommodate industry regulations and were ATEX certified due to the hazardous environment. A unique challenge for this application was that the seals required a consistent sealing pressure, as any abnormal pressure spikes would trigger the explosion arresting system.


The Air Mizer seals were installed in 2012. Following a 100% maintenance/leak free period of 14 months, a second mixer was also upgraded. All Air Mizer seals are operating as designed, maintenance free with zero leakage.

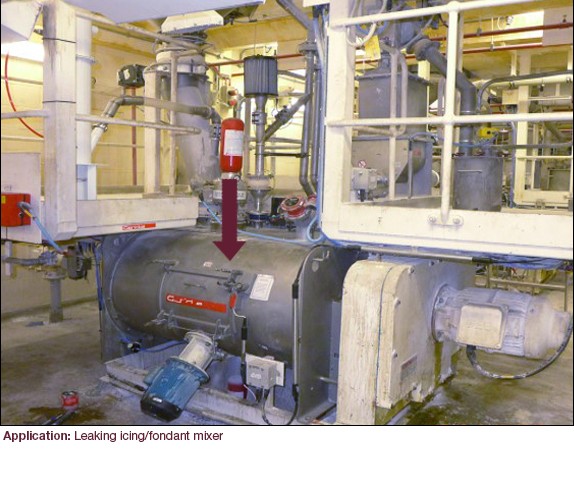

Horizontal mixer for icing/fondant

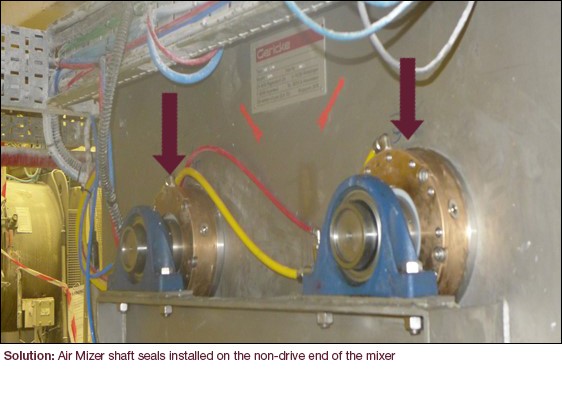

Air Mizer shaft seals installed on non-drive end of fondant mixer
Air Mizer shaft seal cutaway

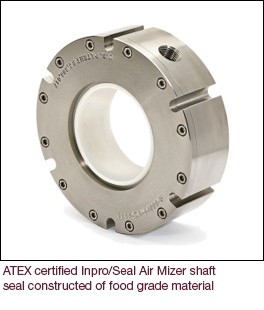

ATEX certified Air Mizer Food Grade shaft seal
