Protect Against Stray Shaft Currents and Contamination in Harsh Environments

For severe-duty VFD-driven equipment, the Inpro/Seal Smart MGS®, combines proven shaft grounding solutions with patented Inpro/Seal Bearing Isolator technology for complete bearing protection against harmful stray shaft currents, contamination ingress and lubrication loss.

The Inpro/Seal MGS’s innovative design significantly increases long term grounding effectiveness while offering superior contamination protection.

Inpro/Seal Smart MGS

Complete Bearing Protection

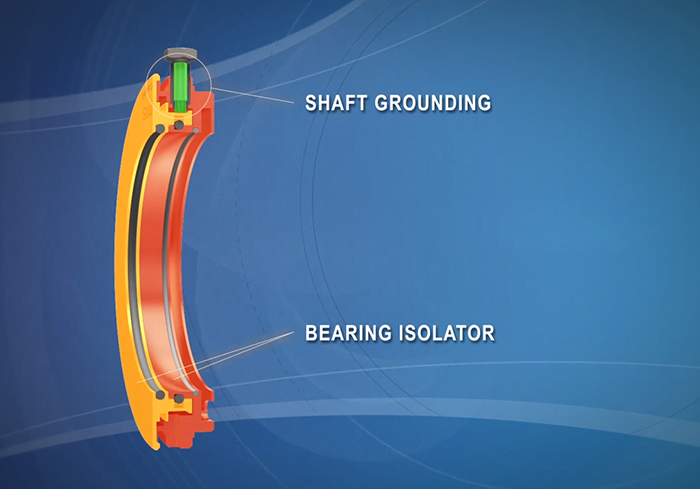

The Smart MGS utilizes a compound labyrinth seal design, isolated conductive filaments and a conductive bronze rotor to divert stray shaft currents away from the bearings while permanently protecting against contamination ingress and lubrication loss.

Its innovative design prevents contamination or lubrication from decreasing shaft grounding performance while providing a consistent contact surface for the conductive filaments to reduce wear and eliminate conduction inhibiting oxidation from forming on the shaft.

To learn more, watch the Smart Shaft Grounding video.

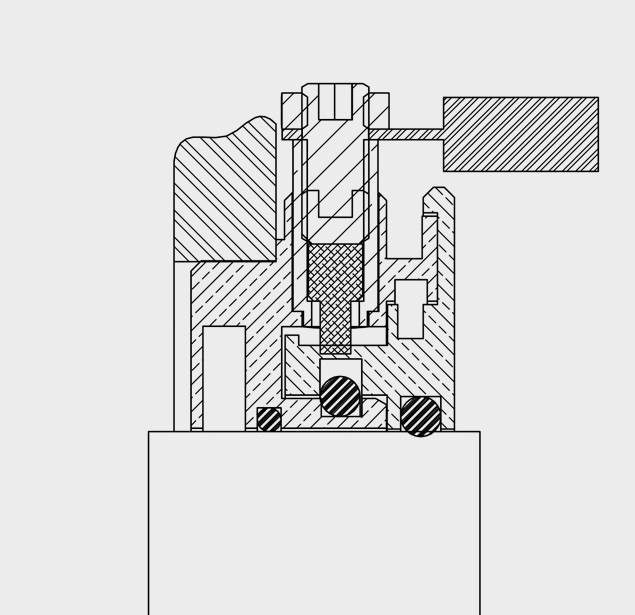

Features and Benefits

  • Smart Terminal – connects to the Smart Ground Monitor to provide condition monitoring
  • XX Interface – unique stator/rotor interface provides IP66 rated permanent protection against contamination ingress
  • VBX® Ring – blocks the transfer of vapor contamination created by heating/cooling of the bearing enclosure
  • D-Groove and Grease Band – provides protection against lubrication loss for both grease and oil lubricated applications
  • Isolated Conductive Filaments – protected from contamination while providing a low impedance path to ground for shaft currents, away from the bearings
  • Bronze Rotor – promotes premium grounding performance through consistent contact with conductive filaments, preventing conduction inhibiting oxidation from forming on the shaft

Technical Data

  • Standard Material – Bearing Bronze
  • Axial Movement – 0.13 mm (0.005 in.)
  • Radial Movement – 0.38 mm (0.015 in.)
  • Temperature Range – -26°C (-15°F) to 204°C (400°F)
  • Speed – 10,000 sfpm
  • Standard Overall Length – 19.78 mm (0.775 in.), 22.86 mm (0.900 in.)
  • Shaft Size – 15.88 mm (0.625 in.) to 1220 mm (48.000 in.)

Consult an Inpro/Seal representative for operating conditions outside of limits shown.
